Tommy lift gates
Tommy Gate Liftgates houses a large selection of popular liftgate models in the DFW area. Below are the models available locally. If you don’t see the model you’re looking for, please click here to contact us for pricing and recommendations on other models available from Tommy Gate.
At Texas Hydraulics & Equipment, we strive to provide the best solutions available for trucking companies and truck drivers who own their own rigs. As part of that mission, we connect trucking professionals with brands like Tommy Gate. This company refers to its products as the original hydraulic lift, and it has been in business since 1965. When you need a new liftgate for your truck, it’s definitely worth taking the time to learn more about Tommy Gate and the products they produce.
Looking for hydraulic repairs? You can learn more here.
Liftgates AVAILABLE IN THE DFW AREA
G2-60-1342 TP27 - For Regular Bed Pick Up Trucks
Gate Features:
1300lbs Lifting Capacity
One-Piece Steel Treadplate Platform
55” W x 27” D + 4” Load Area & Taper
Maximum Travel of 42”
The G2, Dual Drive Series liftgate is compatible with most standard bed pick up trucks. This model utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel. Additional taillights shown are not included.
G2-60-1342 TP38 - For Regular Bed Pick Up Trucks
Gate Features:
1300lbs Lifting Capacity
Two-Piece Steel Treadplate Platform
55” W x 38” D + 4” Load Area & Taper
Maximum Travel of 42”
The G2, Dual Drive Series liftgate is compatible with most standard bed pick up trucks. This model utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel. Additional taillights shown are not included.
G2-60-1342 TP42 - For Regular Bed Pick Up Trucks
Gate Features:
1300lbs Lifting Capacity
Two-Piece Steel Treadplate Platform
55” W x 42” D + 7” Load Area & Taper
Maximum Travel of 42”
The G2, Dual Drive Series liftgate is compatible with most standard bed pick up trucks. This model utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel. Additional taillights shown are not included.
G2-60-1542 TP38 - For Regular Bed Pick Up Trucks
Gate Features:
1500lbs Lifting Capacity
Two-Piece Steel Treadplate Platform
55” W x 38” D + 4” Load Area & Taper
Maximum Travel of 42”
The G2, Dual Drive Series liftgate is compatible with most standard bed pick up trucks. This model utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel. Additional taillights shown are not included.

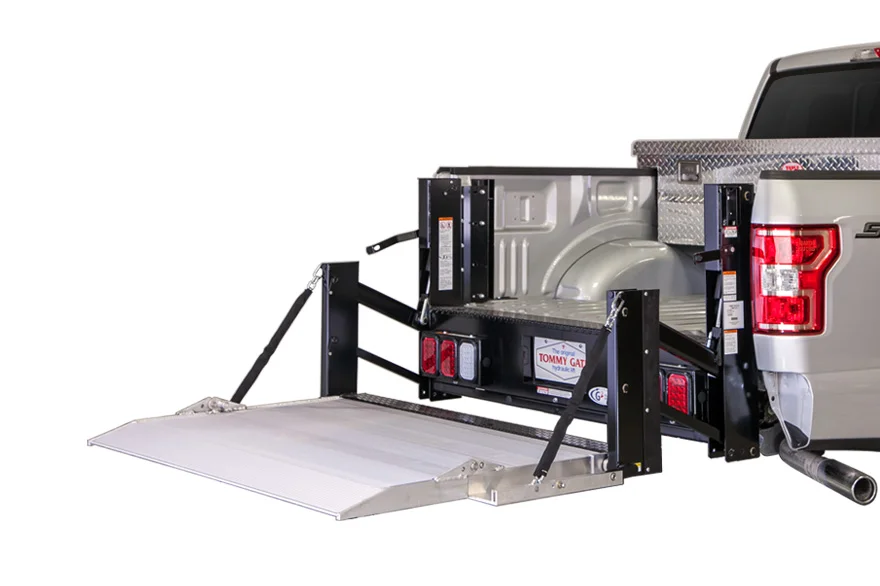

G2-60-1342 EA38 - For Regular Bed Pick Up Trucks
Gate Features:
1300lbs Lifting Capacity
Two-Piece Aluminum Platform
55” W x 38” D + 4” Load Area & Taper
Maximum Travel of 42”
The G2, Dual Drive Series liftgate is compatible with most standard bed pick up trucks. This model utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel. Additional taillights shown are not included.
G2-54-1342 TP27 - For Service Body Pick Up Trucks w/48” Opening
Gate Features:
1300lbs Lifting Capacity
One-Piece Steel Treadplate Platform
49” W x 27” D + 4” Load Area & Taper
Maximum Travel of 42”
The G2, Dual Drive Series liftgate for Service Bodies is compatible with service bodies with a 48” opening. Additional body widths are available, but not stocked locally (Contact us for more information on those). This model utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel.
G2-54-1342 TP38 - For Service Body Pick Up Trucks w/48” Opening
Gate Features:
1300lbs Lifting Capacity
Two-Piece Steel Treadplate Platform
49” W x 38” D + 4” Load Area & Taper
Maximum Travel of 42”
The G2, Dual Drive Series liftgate for Service Bodies is compatible with service bodies with a 48” opening. Additional body widths are available, but not stocked locally (Contact us for more information on those). This model utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel.
G2-54-1642 TP38 - For Service Body Pick Up Trucks w/48” Opening
Gate Features:
1300lbs Lifting Capacity
Two-Piece Steel Treadplate Platform
49” W x 38” D + 4” Load Area & Taper
Maximum Travel of 42”
The G2, Dual Drive Series liftgate for Service Bodies is compatible with service bodies with a 48” opening. Additional body widths are available, but not stocked locally (contact us for more information on those). This model utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel.
G2-92-1650 TP35 - For 96” Wide Flatbed, Stakebed or Box Trucks
Gate Features:
1600lbs Lifting Capacity
One-Piece Steel Treadplate Platform
87” W x 35” D + 6” Load Area & Taper
Maximum Travel of 50”
Just like the pick up lift, the G2, Dual Drive Series liftgate utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel. This model is compatible with most flatbed, stake bed and box trucks. Gates available locally fit an overall bed width of 96”, but additional bed width options are available to ship from Tommy Gate (contact us for more information on those).
G2-92-1650 TP41 - For 96” Wide Flatbed, Stakebed or Box Trucks
Gate Features:
1600lbs Lifting Capacity
One-Piece Steel Treadplate Platform
87” W x 41” D + 6” Load Area & Taper
Maximum Travel of 50”
Just like the pick up lift, the G2, Dual Drive Series liftgate utilizes two hydraulic cylinders, on either side of the platform, resulting in better stabilization and consistency of travel. This model is compatible with most flatbed, stake bed and box trucks. Gates available locally fit an overall bed width of 96”, but additional bed width options are available to ship from Tommy Gate (contact us for more information on those).
89-20 TP37 - For 96” Wide Flatbed, Stakebed or Box Trucks
Gate Features:
2000lbs Lifting Capacity
One-Piece Steel Treadplate Platform
87” W x 37” D + 6” Load Area & Taper
Maximum Travel Range of 32” Loaded to 54” Unloaded
Recessed Light Kit - 3 Light Kit (Two Red, One White, Each Side)
Safety Trip Bar
Self Close System
The Standard Railgate from Tommy Gate, a step up from the G2 Model, offers higher capacity and deeper loading depths for customers with flatbed, stakebed or box trucks. Gates available locally fit an overall bed width of 96”, but additional bed width options are available to ship from Tommy Gate (contact us for more information on those). Add on options are also available for special orders. Those options include above bed travel, LED light kits, cart stops, rubber platform bumpers, dual controls and more.
89-20 TP42 - For 96” Wide Flatbed, Stakebed or Box Trucks
Gate Features:
2000lbs Lifting Capacity
One-Piece Steel Treadplate Platform
87” W x 42” D + 6” Load Area & Taper
Maximum Travel Range of 32” Loaded to 54” Unloaded
Recessed Light Kit - 3 Light Kit (Two Red, One White, Each Side)
Safety Trip Bar
Self Close System
The Standard Railgate from Tommy Gate, a step up from the G2 Model, offers higher capacity and deeper loading depths for customers with flatbed, stakebed or box trucks. Gates available locally fit an overall bed width of 96”, but additional bed width options are available to ship from Tommy Gate (contact us for more information on those). Add on options are also available for special orders. Those options include above bed travel, LED light kits, cart stops, rubber platform bumpers, dual controls and more.
89-20 EA55 - For 96” Wide Flatbed, Stakebed or Box Trucks
Gate Features:
2000lbs Lifting Capacity
One-Piece Extruded Aluminum Platform
87” W x 55” D + 12” Load Area & Taper
Maximum Travel Range of 32” Loaded to 54” Unloaded
Recessed Light Kit - 3 Light Kit (Two Red, One White, Each Side)
Safety Trip Bar
Self Close System
The Standard Railgate from Tommy Gate, a step up from the G2 Model, offers higher capacity and deeper loading depths for customers with flatbed, stakebed or box trucks. Gates available locally fit an overall bed width of 96”, but additional bed width options are available to ship from Tommy Gate (contact us for more information on those). Add on options are also available for special orders. Those options include above bed travel, LED light kits, cart stops, rubber platform bumpers, dual controls and more.
Need more liftgate options?
If you don’t see a Tommy Gate that fits exactly what you’re looking for or you need help determining the gate that’s right for you and your needs, please contact us at the link below. Someone will reach out to you during business hours to follow up on your request.
Why Choose Tommy Gate Liftgates
Tommy Gate was developed by Woodbine Manufacturing Company to create a premier offering of hydraulic lifts. It’s been growing for more than five decades now, which means trucking professionals can rest assured that they’ll be able to provide consistent service for years to come. As a company, Tommy Gate has a sterling reputation. This brand is known for adhering to high standards for quality, craftsmanship, and customer service. The engineers at Tommy Gate are brilliant, the assembly line is state of the art, and the quality control is second to none.
About Tommy Gate Liftgates
Delbert “Bus” Brown founded Tommy Gate in 1965 and named it after his son. Legend has it that Bus used to load hydraulic lifts into his pickup trailer and drive around to sell them. He’d install the liftgates himself, and return home once he’d sold all of the gates he had with him. The process has scaled considerably since then, and Tommy Gate now operates out of a 200,000 square foot factory, which is still located right where the company was founded in Woodbine, Iowa.
Woodbine Manufacturing Company is named after, and committed to, its community. It’s also 100% family-owned. Maybe that’s why this brand is known for taking so much pride in the work and providing good jobs here in the United States. When you buy a liftgate from Tommy Gate, you’ll experience excellent customer service and receive a high-quality product.
Types of Tommy Gate Liftgates
Tommy Gate produces a diverse offering of different liftgates, which means you can find the perfect one for almost any situation. In the last 50 years of innovating within the liftgate industry, Tommy Gate has mastered the art and science of creating liftgates that pair appropriately with the vehicle on which they’re installed. From pickup trucks and service bodies to flatbeds and van trailers, just about any type of truck in your fleet can be paired with a liftgate from Tommy Gate.
Their full lineup of liftgates includes all of the following:
For Pickup Trucks
Tommy Gate G2 Series
Tommy Gate Original Series
For Service Body Trucks
Tommy Gate G2 Series
Tommy Gate Original Series
For Flatbeds, Stakes, and Vans
Tommy Gate G2 Series
Tommy Gate Original Series
Tommy Gate Tuckunder Series
TKT
TKL
Tommy Gate Railgate Series
High-Cycle
Bi-Fold
Standard
Dock-Friendly
For Dump Body Trucks
Tommy Gate G2 Series
For Step Vans
Tommy Gate Railgate Series: RTC
For Cargo Vans
Tommy Gate Cantilever Series
Tommy Gate 650 Series
Tommy Gate Original Series
The options are especially diverse in the Tuckunder Series and Railgate Series for flatbeds, stakes, and vans, which is important for trucking professionals with various needs.
Get Tommy Gate Liftgate Installation at Texas Hydraulics and Equipment in Dallas
Offering different types of Tommy Gate Liftgate Models in Texas. When you decide to get a Tommy Gate liftgate installed, come visit us at Texas Hydraulics & Equipment. Our team is extremely experienced with this brand, which is part of the reason we became the largest liftgate installer in the Dallas Fort Worth Metroplex. We provide fast and professional service for Tommy Gate installations and repairs, so contact us today to get started. Click here to see all the services we provide.
